Make a new polyhedral topology, coordset, and matset by extracting selected zones from the input 3D structured mesh. We make assumptions for structured 3D meshes that let us make unique faces by construction. More...

#include </home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/develop/src/axom/bump/ExtractZonesAndMatsetPolyhedral.hpp>

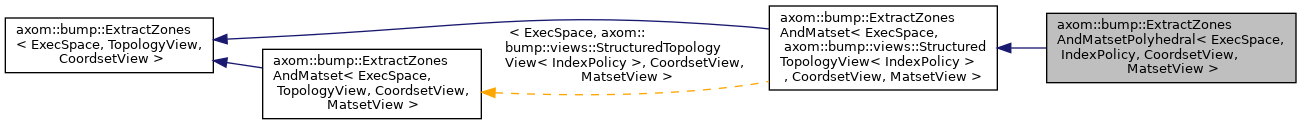

Inheritance diagram for axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >:

[legend]

Public Types
using	ParentClass = ExtractZonesAndMatset< ExecSpace, axom::bump::views::StructuredTopologyView< IndexPolicy >, CoordsetView, MatsetView >

using	Sizes = typename ParentClass::Sizes

using	SelectedZonesView = typename ParentClass::SelectedZonesView

using	TopologyView = axom::bump::views::StructuredTopologyView< IndexPolicy >

using	ConnectivityType = typename TopologyView::ConnectivityType

using	ZoneType = typename TopologyView::ShapeType

Public Member Functions
	ExtractZonesAndMatsetPolyhedral (const TopologyView &topoView, const CoordsetView &coordsetView, const MatsetView &matsetView)
	Constructor. More...

virtual	~ExtractZonesAndMatsetPolyhedral ()=default
	Destructor. More...

void	execute (const SelectedZonesView &selectedZonesView, const conduit::Node &n_input, const conduit::Node &n_options, conduit::Node &n_output)
	Select zones from the input mesh by id and output them in the output mesh. More...

void	setAllocatorID (int allocator_id)
	Set the allocator id to use when allocating memory. More...

int	getAllocatorID () const
	Get the allocator id to use when allocating memory. More...

Protected Member Functions
virtual void	makeTopology (const SelectedZonesView selectedZonesView, const Sizes &AXOM_UNUSED_PARAM(dataSizes), const Sizes &AXOM_UNUSED_PARAM(extra), const axom::ArrayView< ConnectivityType > &old2newView, const conduit::Node &n_topo, const conduit::Node &AXOM_UNUSED_PARAM(n_options), conduit::Node &n_newTopo) const override
	Make the output topology for just the selected zones. This is an override of the base class' behavior and we make assumptions for 3D structured topologies to help make faces more easily. More...

std::string	matsetName (const conduit::Node &n_input, const std::string &topoName) const
	Return the matset for the named topology. More...

void	makeMatset (const SelectedZonesView selectedZonesView, const conduit::Node &n_matset, conduit::Node &n_newMatset) const
	Make a new matset that covers the selected zones. More...

axom::ArrayView< axom::IndexType >	zoneSliceView (const SelectedZonesView &selectedZonesView, const Sizes &extra)
	Create a zone slice view, building m_zoneSlice if needed. More...

Sizes	getExtra (const conduit::Node &n_options) const
	Return a Sizes object initialized from the options. More...

Sizes	nodeMap (const SelectedZonesView &selectedZonesView, const Sizes &extra, axom::Array< ConnectivityType > &AXOM_UNUSED_PARAM(old2new), axom::Array< axom::IndexType > &nodeSlice) const
	Make node map and node slice information for the selected zones but do not limit the selection to only the used nodes. More...

Sizes	compactNodeMap (const SelectedZonesView selectedZonesView, const Sizes &extra, axom::Array< ConnectivityType > &old2new, axom::Array< axom::IndexType > &nodeSlice) const
	Make node map and node slice information for the selected zones selecting only the used nodes. More...

virtual void	makeTopology (const SelectedZonesView selectedZonesView, const Sizes &dataSizes, const Sizes &extra, const axom::ArrayView< ConnectivityType > &old2newView, const conduit::Node &n_topo, const conduit::Node &n_options, conduit::Node &n_newTopo) const
	Make the output topology for just the selected zones. More...

void	makeCoordset (const SliceData &nodeSlice, const conduit::Node &n_coordset, conduit::Node &n_newCoordset) const
	Make the new coordset using the blend data and the input coordset/coordsetview. More...

void	makeFields (const SliceData &nodeSlice, const SliceData &zoneSlice, const std::string &newTopoName, const conduit::Node &n_fields, conduit::Node &n_newFields) const
	Make fields for the output mesh, as needed. More...

std::string	topologyName (const conduit::Node &n_input, const conduit::Node &n_options) const
	Get the topology name. More...

bool	compact (const conduit::Node &n_options) const
	Return whether coordset/vertex compaction is desired. More...

std::string	outputShape (const conduit::Node &n_topo) const
	Return the name of the output shape type. More...

Protected Attributes
MatsetView	m_matsetView

TopologyView	m_topologyView

CoordsetView	m_coordsetView

axom::Array< axom::IndexType >	m_zoneSlice

int	m_allocator_id

Detailed Description

template<typename ExecSpace, typename IndexPolicy, typename CoordsetView, typename MatsetView>
class axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >

Make a new polyhedral topology, coordset, and matset by extracting selected zones from the input 3D structured mesh. We make assumptions for structured 3D meshes that let us make unique faces by construction.

Template Parameters

ExecSpace	The execution space where the algorithm will run.
IndexPolicy	The structured indexing policy used in the topology.
CoordsetView	The coordset view type.
MatsetView	The matset view type.

Member Typedef Documentation

◆ ParentClass

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

using axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::ParentClass = ExtractZonesAndMatset<ExecSpace, axom::bump::views::StructuredTopologyView<IndexPolicy>, CoordsetView, MatsetView>

◆ Sizes

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

using axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::Sizes = typename ParentClass::Sizes

◆ SelectedZonesView

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

using axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::SelectedZonesView = typename ParentClass::SelectedZonesView

◆ TopologyView

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

using axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::TopologyView = axom::bump::views::StructuredTopologyView<IndexPolicy>

◆ ConnectivityType

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

using axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::ConnectivityType = typename TopologyView::ConnectivityType

◆ ZoneType

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

using axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::ZoneType = typename TopologyView::ShapeType

inherited

Constructor & Destructor Documentation

◆ ExtractZonesAndMatsetPolyhedral()

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::ExtractZonesAndMatsetPolyhedral	(	const TopologyView &	topoView,
		const CoordsetView &	coordsetView,
		const MatsetView &	matsetView
	)

inline

Constructor.

Parameters

topoView	The input topology view.
coordsetView	The input coordset view.
matsetView	The input matset view.

◆ ~ExtractZonesAndMatsetPolyhedral()

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

virtual axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::~ExtractZonesAndMatsetPolyhedral ( )

virtualdefault

Destructor.

Member Function Documentation

◆ makeTopology() [1/2]

template<typename ExecSpace , typename IndexPolicy , typename CoordsetView , typename MatsetView >

virtual void axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >::makeTopology	(	const SelectedZonesView	selectedZonesView,
		const Sizes &	AXOM_UNUSED_PARAMdataSizes,
		const Sizes &	AXOM_UNUSED_PARAMextra,
		const axom::ArrayView< ConnectivityType > &	old2newView,
		const conduit::Node &	n_topo,
		const conduit::Node &	AXOM_UNUSED_PARAMn_options,
		conduit::Node &	n_newTopo
	)		const

inlineoverrideprotectedvirtual

Make the output topology for just the selected zones. This is an override of the base class' behavior and we make assumptions for 3D structured topologies to help make faces more easily.

Parameters

selectedZonesView	A view that contains the ids of the zones to extract.
dataSizes	Array sizes for connectivity, sizes, etc.
extra	Extra sizes for connectivity, sizes, etc.
old2newView	A view that lets us map old node numbers to new node numbers.
n_topo	The input topology.
n_options	A node containing the options (ignored).
n_newTopo	A node to contain the new topology.

References AXOM_ANNOTATE_BEGIN, AXOM_ANNOTATE_END, AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::sidre::ConduitMemory::axomAllocIdToConduit(), axom::Array< T, DIM, SPACE, StoragePolicy >::clear(), axom::Array< T, DIM, SPACE, StoragePolicy >::fill(), axom::serial::reductions::ReduceSum< ExecSpace, T >::get(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::views::StructuredTopologyView< IndexPolicy >::numberOfZones(), axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ASSERT, SLIC_ERROR_IF, and axom::Array< T, DIM, SPACE, StoragePolicy >::view().

◆ execute()

void axom::bump::ExtractZonesAndMatset< ExecSpace, axom::bump::views::StructuredTopologyView< IndexPolicy > , CoordsetView, MatsetView >::execute	(	const SelectedZonesView &	selectedZonesView,
		const conduit::Node &	n_input,
		const conduit::Node &	n_options,
		conduit::Node &	n_output
	)

inlineinherited

Select zones from the input mesh by id and output them in the output mesh.

Parameters

	selectedZonesView	A view that contains the selected zone ids.
	n_input	The input mesh.
	n_options	The input options.
[out]	n_output	The output mesh.

Note: The n_options node contains a "topology" string that is selects the name of the topology to extract.

◆ matsetName()

std::string axom::bump::ExtractZonesAndMatset< ExecSpace, axom::bump::views::StructuredTopologyView< IndexPolicy > , CoordsetView, MatsetView >::matsetName	(	const conduit::Node &	n_input,
		const std::string &	topoName
	)		const

inlineprotectedinherited

Return the matset for the named topology.

Parameters

n_input	The input mesh.
topoName	The name of the topology.

Returns: The name of the matset for the topology or an empty string if no matset was found.

◆ makeMatset()

void axom::bump::ExtractZonesAndMatset< ExecSpace, axom::bump::views::StructuredTopologyView< IndexPolicy > , CoordsetView, MatsetView >::makeMatset	(	const SelectedZonesView	selectedZonesView,
		const conduit::Node &	n_matset,
		conduit::Node &	n_newMatset
	)		const

inlineprotectedinherited

Make a new matset that covers the selected zones.

Parameters

selectedZonesView	A view that contains the selected zones.
n_matset	The input matset.
n_newMatset	A node that will contain the new matset.

◆ setAllocatorID()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::setAllocatorID ( int allocator_id )

inlineinherited

Set the allocator id to use when allocating memory.

Parameters

allocator_id The allocator id to use when allocating memory.

References axom::isValidAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_allocator_id, and SLIC_ERROR_IF.

◆ getAllocatorID()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

int axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID ( ) const

inlineinherited

Get the allocator id to use when allocating memory.

Returns: The allocator id to use when allocating memory.

References axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_allocator_id.

◆ zoneSliceView()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

axom::ArrayView<axom::IndexType> axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::zoneSliceView	(	const SelectedZonesView &	selectedZonesView,
		const Sizes &	extra
	)

inlineprotectedinherited

Create a zone slice view, building m_zoneSlice if needed.

Parameters

selectedZonesView	A view that contains the selected zone ids.
extra	A Sizes object containing any extra size that needs to be allocated.

Returns: An array view containing the zone slice.

References AXOM_LAMBDA, axom::copy(), axom::ArrayView< T, DIM, SPACE >::data(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_zoneSlice, axom::Array< T, DIM, SPACE, StoragePolicy >::size(), axom::ArrayView< T, DIM, SPACE >::size(), axom::Array< T, DIM, SPACE, StoragePolicy >::view(), and axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::zones.

◆ getExtra()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

Sizes axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getExtra ( const conduit::Node & n_options ) const

inlineprotectedinherited

Return a Sizes object initialized from the options.

Parameters

n_options The options node that contains extra sizes.

Returns: A Sizes object that contains extra sizes. Values not present in the options will be 0.

References axom::utilities::max(), and axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::nodes.

◆ nodeMap()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

Sizes axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::nodeMap	(	const SelectedZonesView &	selectedZonesView,
		const Sizes &	extra,
		axom::Array< ConnectivityType > &	AXOM_UNUSED_PARAMold2new,
		axom::Array< axom::IndexType > &	nodeSlice
	)		const

inlineprotectedinherited

Make node map and node slice information for the selected zones but do not limit the selection to only the used nodes.

Parameters

	selectedZonesView	The selected zones.
	extra	A Sizes object containing any extra sizes to use for allocation.
[out]	old2new	An array that contains the new node id for each node in the mesh.
[out]	nodeSlice	An array that contains the node ids that will be selected from the input mesh when making coordsets and vertex fields.

Returns: A Sizes object that contains the size of the nodes,zones,connectivity (excluding extra) for the output mesh.

Note: old2new is not used in this method.

References AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::ArrayView< T, DIM, SPACE >::empty(), axom::serial::reductions::ReduceSum< ExecSpace, T >::get(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::nodes, axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ERROR_IF, and axom::Array< T, DIM, SPACE, StoragePolicy >::view().

◆ compactNodeMap()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

Sizes axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::compactNodeMap	(	const SelectedZonesView	selectedZonesView,
		const Sizes &	extra,
		axom::Array< ConnectivityType > &	old2new,
		axom::Array< axom::IndexType > &	nodeSlice
	)		const

inlineprotectedinherited

Make node map and node slice information for the selected zones selecting only the used nodes.

Parameters

	selectedZonesView	The selected zones.
	extra	A Sizes object containing any extra sizes to use for allocation.
[out]	old2new	An array that contains the new node id for each node in the mesh.
[out]	nodeSlice	An array that contains the node ids that will be selected from the input mesh when making coordsets and vertex fields.

Returns: A Sizes object that contains the size of the nodes,zones,connectivity (excluding extra) for the output mesh.

References AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::ArrayView< T, DIM, SPACE >::empty(), axom::Array< T, DIM, SPACE, StoragePolicy >::fill(), axom::serial::reductions::ReduceSum< ExecSpace, T >::get(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::nodes, axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ERROR_IF, SLIC_INFO, and axom::Array< T, DIM, SPACE, StoragePolicy >::view().

◆ makeTopology() [2/2]

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

virtual void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::makeTopology	(	const SelectedZonesView	selectedZonesView,
		const Sizes &	dataSizes,
		const Sizes &	extra,
		const axom::ArrayView< ConnectivityType > &	old2newView,
		const conduit::Node &	n_topo,
		const conduit::Node &	n_options,
		conduit::Node &	n_newTopo
	)		const

inlineprotectedvirtualinherited

Make the output topology for just the selected zones.

Parameters

selectedZonesView	A view that contains the ids of the zones to extract.
dataSizes	Array sizes for connectivity, sizes, etc.
extra	Extra sizes for connectivity, sizes, etc.
old2newView	A view that lets us map old node numbers to new node numbers.
n_topo	The input topology.
n_options	A node containing the options.
n_newTopo	A node to contain the new topology.

References AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::sidre::ConduitMemory::axomAllocIdToConduit(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::compact(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::connectivity, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::outputShape(), axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ERROR, and axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::zones.

◆ makeCoordset()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::makeCoordset	(	const SliceData &	nodeSlice,
		const conduit::Node &	n_coordset,
		conduit::Node &	n_newCoordset
	)		const

inlineprotectedinherited

Make the new coordset using the blend data and the input coordset/coordsetview.

Parameters

	nodeSlice	Node slice information.
	n_coordset	The input coordset, which is passed for metadata.
[out]	n_newCoordset	The new coordset.

References AXOM_ANNOTATE_SCOPE, axom::bump::CoordsetSlicer< ExecSpace, CoordsetView >::execute(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView, and axom::bump::CoordsetSlicer< ExecSpace, CoordsetView >::setAllocatorID().

◆ makeFields()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::makeFields	(	const SliceData &	nodeSlice,
		const SliceData &	zoneSlice,
		const std::string &	newTopoName,
		const conduit::Node &	n_fields,
		conduit::Node &	n_newFields
	)		const

inlineprotectedinherited

Make fields for the output mesh, as needed.

Parameters

nodeSlice	Node slice information.
zoneSlice	Zone slice information.
newTopoName	The name of the new topology for the field.
n_fields	The input fields.
n_newFields	The output fields.

References AXOM_ANNOTATE_SCOPE, axom::bump::FieldSlicer< ExecSpace, IndexingPolicy >::execute(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), and axom::bump::FieldSlicer< ExecSpace, IndexingPolicy >::setAllocatorID().

◆ topologyName()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

std::string axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::topologyName	(	const conduit::Node &	n_input,
		const conduit::Node &	n_options
	)		const

inlineprotectedinherited

Get the topology name.

Parameters

n_input	The input mesh.
n_options	The options node that may contain a "topology" string.

Returns: Returns the options topology name, if present. Otherwise, it returns the first topology name.

◆ compact()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

bool axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::compact ( const conduit::Node & n_options ) const

inlineprotectedinherited

Return whether coordset/vertex compaction is desired.

Parameters

n_options The options node that may contain a "topology" string.

Returns: True if compaction is on (the default), false otherwise.

◆ outputShape()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

std::string axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::outputShape ( const conduit::Node & n_topo ) const

inlineprotectedinherited

Return the name of the output shape type.

Parameters

n_topo The input topology node.

Returns: The name of the output shape.

Member Data Documentation

◆ m_matsetView

MatsetView axom::bump::ExtractZonesAndMatset< ExecSpace, axom::bump::views::StructuredTopologyView< IndexPolicy > , CoordsetView, MatsetView >::m_matsetView

protectedinherited

◆ m_topologyView

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

TopologyView axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView

protectedinherited

◆ m_coordsetView

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

CoordsetView axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView

protectedinherited

◆ m_zoneSlice

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

axom::Array<axom::IndexType> axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_zoneSlice

protectedinherited

◆ m_allocator_id

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

int axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_allocator_id

protectedinherited

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/develop/src/axom/bump/ExtractZonesAndMatsetPolyhedral.hpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<typename ExecSpace, typename IndexPolicy, typename CoordsetView, typename MatsetView> class axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >

Member Typedef Documentation

◆ ParentClass

◆ Sizes

◆ SelectedZonesView

◆ TopologyView

◆ ConnectivityType

◆ ZoneType

Constructor & Destructor Documentation

◆ ExtractZonesAndMatsetPolyhedral()

◆ ~ExtractZonesAndMatsetPolyhedral()

Member Function Documentation

◆ makeTopology() [1/2]

◆ execute()

◆ matsetName()

◆ makeMatset()

◆ setAllocatorID()

◆ getAllocatorID()

◆ zoneSliceView()

◆ getExtra()

◆ nodeMap()

◆ compactNodeMap()

◆ makeTopology() [2/2]

◆ makeCoordset()

◆ makeFields()

◆ topologyName()

◆ compact()

◆ outputShape()

Member Data Documentation

◆ m_matsetView

◆ m_topologyView

◆ m_coordsetView

◆ m_zoneSlice

◆ m_allocator_id

template<typename ExecSpace, typename IndexPolicy, typename CoordsetView, typename MatsetView>
class axom::bump::ExtractZonesAndMatsetPolyhedral< ExecSpace, IndexPolicy, CoordsetView, MatsetView >
