Make a new topology and coordset by extracting certain zones from the input mesh. More...

#include </home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/develop/src/axom/bump/ExtractZones.hpp>

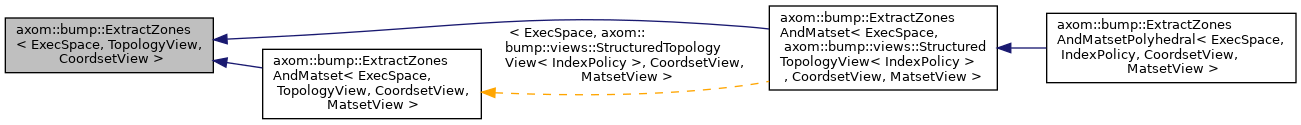

Inheritance diagram for axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >:

[legend]

Classes
struct	Sizes
	This struct contains extra amounts of storage that we might want to overallocate. More...

Public Types
using	SelectedZonesView = axom::ArrayView< axom::IndexType >

using	ZoneType = typename TopologyView::ShapeType

Public Member Functions
	ExtractZones (const TopologyView &topoView, const CoordsetView &coordsetView)
	Constructor. More...

virtual	~ExtractZones ()=default
	Destructor. More...

void	setAllocatorID (int allocator_id)
	Set the allocator id to use when allocating memory. More...

int	getAllocatorID () const
	Get the allocator id to use when allocating memory. More...

void	execute (const SelectedZonesView &selectedZonesView, const conduit::Node &n_input, const conduit::Node &n_options, conduit::Node &n_output)
	Select zones from the input mesh by id and output them in the output mesh. More...

Protected Member Functions
axom::ArrayView< axom::IndexType >	zoneSliceView (const SelectedZonesView &selectedZonesView, const Sizes &extra)
	Create a zone slice view, building m_zoneSlice if needed. More...

Sizes	getExtra (const conduit::Node &n_options) const
	Return a Sizes object initialized from the options. More...

Sizes	nodeMap (const SelectedZonesView &selectedZonesView, const Sizes &extra, axom::Array< ConnectivityType > &AXOM_UNUSED_PARAM(old2new), axom::Array< axom::IndexType > &nodeSlice) const
	Make node map and node slice information for the selected zones but do not limit the selection to only the used nodes. More...

Sizes	compactNodeMap (const SelectedZonesView selectedZonesView, const Sizes &extra, axom::Array< ConnectivityType > &old2new, axom::Array< axom::IndexType > &nodeSlice) const
	Make node map and node slice information for the selected zones selecting only the used nodes. More...

virtual void	makeTopology (const SelectedZonesView selectedZonesView, const Sizes &dataSizes, const Sizes &extra, const axom::ArrayView< ConnectivityType > &old2newView, const conduit::Node &n_topo, const conduit::Node &n_options, conduit::Node &n_newTopo) const
	Make the output topology for just the selected zones. More...

void	makeCoordset (const SliceData &nodeSlice, const conduit::Node &n_coordset, conduit::Node &n_newCoordset) const
	Make the new coordset using the blend data and the input coordset/coordsetview. More...

void	makeFields (const SliceData &nodeSlice, const SliceData &zoneSlice, const std::string &newTopoName, const conduit::Node &n_fields, conduit::Node &n_newFields) const
	Make fields for the output mesh, as needed. More...

std::string	topologyName (const conduit::Node &n_input, const conduit::Node &n_options) const
	Get the topology name. More...

bool	compact (const conduit::Node &n_options) const
	Return whether coordset/vertex compaction is desired. More...

std::string	outputShape (const conduit::Node &n_topo) const
	Return the name of the output shape type. More...

Protected Attributes
TopologyView	m_topologyView

CoordsetView	m_coordsetView

axom::Array< axom::IndexType >	m_zoneSlice

int	m_allocator_id

Detailed Description

template<typename ExecSpace, typename TopologyView, typename CoordsetView>
class axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >

Make a new topology and coordset by extracting certain zones from the input mesh.

Template Parameters

ExecSpace	The execution space where the algorithm will run.
TopologyView	The topology view type on which the algorithm will run.

Member Typedef Documentation

◆ SelectedZonesView

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

using axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::SelectedZonesView = axom::ArrayView<axom::IndexType>

◆ ZoneType

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

using axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::ZoneType = typename TopologyView::ShapeType

Constructor & Destructor Documentation

◆ ExtractZones()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::ExtractZones	(	const TopologyView &	topoView,
		const CoordsetView &	coordsetView
	)

inline

Constructor.

Parameters

topoView	The input topology view.
coordsetView	The input coordset view.
matsetView	The input matset view.

◆ ~ExtractZones()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

virtual axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::~ExtractZones ( )

virtualdefault

Destructor.

Member Function Documentation

◆ setAllocatorID()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::setAllocatorID ( int allocator_id )

inline

Set the allocator id to use when allocating memory.

Parameters

allocator_id The allocator id to use when allocating memory.

References axom::isValidAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_allocator_id, and SLIC_ERROR_IF.

◆ getAllocatorID()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

int axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID ( ) const

inline

Get the allocator id to use when allocating memory.

Returns: The allocator id to use when allocating memory.

References axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_allocator_id.

◆ execute()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::execute	(	const SelectedZonesView &	selectedZonesView,
		const conduit::Node &	n_input,
		const conduit::Node &	n_options,
		conduit::Node &	n_output
	)

inline

Select zones from the input mesh by id and output them in the output mesh.

Parameters

	selectedZonesView	A view that contains the selected zone ids.
	n_input	The input mesh.
	n_options	The input options.
[out]	n_output	The output mesh.

The n_options node controls how the algorithm works.

topology: mesh
compact: 1
extra:
 nodes: 0
 zones: 0
 connectivity: 0

The "topology" node contains a string that selects the name of the topology to extract. The "compact" node causes the algorithm to restrict the output coordset and vertex fields to only the nodes used by the selected zones. If "compact" is set to 0 then the original coordset and vertex fields will retain their size in the output mesh. The "extra" node is optional and it contains 3 integer values for extra allocation to be made for nodes, zones, and connectivity. This extra space can be filled in later by the application.

◆ zoneSliceView()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

axom::ArrayView<axom::IndexType> axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::zoneSliceView	(	const SelectedZonesView &	selectedZonesView,
		const Sizes &	extra
	)

inlineprotected

Create a zone slice view, building m_zoneSlice if needed.

Parameters

selectedZonesView	A view that contains the selected zone ids.
extra	A Sizes object containing any extra size that needs to be allocated.

Returns: An array view containing the zone slice.

References AXOM_LAMBDA, axom::copy(), axom::ArrayView< T, DIM, SPACE >::data(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_zoneSlice, axom::Array< T, DIM, SPACE, StoragePolicy >::size(), axom::ArrayView< T, DIM, SPACE >::size(), axom::Array< T, DIM, SPACE, StoragePolicy >::view(), and axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::zones.

◆ getExtra()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

Sizes axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getExtra ( const conduit::Node & n_options ) const

inlineprotected

Return a Sizes object initialized from the options.

Parameters

n_options The options node that contains extra sizes.

Returns: A Sizes object that contains extra sizes. Values not present in the options will be 0.

References axom::utilities::max(), and axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::nodes.

◆ nodeMap()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

Sizes axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::nodeMap	(	const SelectedZonesView &	selectedZonesView,
		const Sizes &	extra,
		axom::Array< ConnectivityType > &	AXOM_UNUSED_PARAMold2new,
		axom::Array< axom::IndexType > &	nodeSlice
	)		const

inlineprotected

Make node map and node slice information for the selected zones but do not limit the selection to only the used nodes.

Parameters

	selectedZonesView	The selected zones.
	extra	A Sizes object containing any extra sizes to use for allocation.
[out]	old2new	An array that contains the new node id for each node in the mesh.
[out]	nodeSlice	An array that contains the node ids that will be selected from the input mesh when making coordsets and vertex fields.

Returns: A Sizes object that contains the size of the nodes,zones,connectivity (excluding extra) for the output mesh.

Note: old2new is not used in this method.

References AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::ArrayView< T, DIM, SPACE >::empty(), axom::serial::reductions::ReduceSum< ExecSpace, T >::get(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::nodes, axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ERROR_IF, and axom::Array< T, DIM, SPACE, StoragePolicy >::view().

◆ compactNodeMap()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

Sizes axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::compactNodeMap	(	const SelectedZonesView	selectedZonesView,
		const Sizes &	extra,
		axom::Array< ConnectivityType > &	old2new,
		axom::Array< axom::IndexType > &	nodeSlice
	)		const

inlineprotected

Make node map and node slice information for the selected zones selecting only the used nodes.

Parameters

	selectedZonesView	The selected zones.
	extra	A Sizes object containing any extra sizes to use for allocation.
[out]	old2new	An array that contains the new node id for each node in the mesh.
[out]	nodeSlice	An array that contains the node ids that will be selected from the input mesh when making coordsets and vertex fields.

Returns: A Sizes object that contains the size of the nodes,zones,connectivity (excluding extra) for the output mesh.

References AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::ArrayView< T, DIM, SPACE >::empty(), axom::Array< T, DIM, SPACE, StoragePolicy >::fill(), axom::serial::reductions::ReduceSum< ExecSpace, T >::get(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::nodes, axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ERROR_IF, SLIC_INFO, and axom::Array< T, DIM, SPACE, StoragePolicy >::view().

◆ makeTopology()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

virtual void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::makeTopology	(	const SelectedZonesView	selectedZonesView,
		const Sizes &	dataSizes,
		const Sizes &	extra,
		const axom::ArrayView< ConnectivityType > &	old2newView,
		const conduit::Node &	n_topo,
		const conduit::Node &	n_options,
		conduit::Node &	n_newTopo
	)		const

inlineprotectedvirtual

Make the output topology for just the selected zones.

Parameters

selectedZonesView	A view that contains the ids of the zones to extract.
dataSizes	Array sizes for connectivity, sizes, etc.
extra	Extra sizes for connectivity, sizes, etc.
old2newView	A view that lets us map old node numbers to new node numbers.
n_topo	The input topology.
n_options	A node containing the options.
n_newTopo	A node to contain the new topology.

References AXOM_ANNOTATE_SCOPE, AXOM_LAMBDA, axom::sidre::ConduitMemory::axomAllocIdToConduit(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::compact(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::connectivity, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView, axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::outputShape(), axom::ArrayView< T, DIM, SPACE >::size(), SLIC_ERROR, and axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::Sizes::zones.

◆ makeCoordset()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::makeCoordset	(	const SliceData &	nodeSlice,
		const conduit::Node &	n_coordset,
		conduit::Node &	n_newCoordset
	)		const

inlineprotected

Make the new coordset using the blend data and the input coordset/coordsetview.

Parameters

	nodeSlice	Node slice information.
	n_coordset	The input coordset, which is passed for metadata.
[out]	n_newCoordset	The new coordset.

References AXOM_ANNOTATE_SCOPE, axom::bump::CoordsetSlicer< ExecSpace, CoordsetView >::execute(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView, and axom::bump::CoordsetSlicer< ExecSpace, CoordsetView >::setAllocatorID().

◆ makeFields()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

void axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::makeFields	(	const SliceData &	nodeSlice,
		const SliceData &	zoneSlice,
		const std::string &	newTopoName,
		const conduit::Node &	n_fields,
		conduit::Node &	n_newFields
	)		const

inlineprotected

Make fields for the output mesh, as needed.

Parameters

nodeSlice	Node slice information.
zoneSlice	Zone slice information.
newTopoName	The name of the new topology for the field.
n_fields	The input fields.
n_newFields	The output fields.

References AXOM_ANNOTATE_SCOPE, axom::bump::FieldSlicer< ExecSpace, IndexingPolicy >::execute(), axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::getAllocatorID(), and axom::bump::FieldSlicer< ExecSpace, IndexingPolicy >::setAllocatorID().

◆ topologyName()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

std::string axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::topologyName	(	const conduit::Node &	n_input,
		const conduit::Node &	n_options
	)		const

inlineprotected

Get the topology name.

Parameters

n_input	The input mesh.
n_options	The options node that may contain a "topology" string.

Returns: Returns the options topology name, if present. Otherwise, it returns the first topology name.

◆ compact()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

bool axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::compact ( const conduit::Node & n_options ) const

inlineprotected

Return whether coordset/vertex compaction is desired.

Parameters

n_options The options node that may contain a "topology" string.

Returns: True if compaction is on (the default), false otherwise.

◆ outputShape()

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

std::string axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::outputShape ( const conduit::Node & n_topo ) const

inlineprotected

Return the name of the output shape type.

Parameters

n_topo The input topology node.

Returns: The name of the output shape.

Member Data Documentation

◆ m_topologyView

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

TopologyView axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_topologyView

protected

◆ m_coordsetView

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

CoordsetView axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_coordsetView

protected

◆ m_zoneSlice

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

axom::Array<axom::IndexType> axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_zoneSlice

protected

◆ m_allocator_id

template<typename ExecSpace , typename TopologyView , typename CoordsetView >

int axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >::m_allocator_id

protected

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/develop/src/axom/bump/ExtractZones.hpp

Classes

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<typename ExecSpace, typename TopologyView, typename CoordsetView> class axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >

Member Typedef Documentation

◆ SelectedZonesView

◆ ZoneType

Constructor & Destructor Documentation

◆ ExtractZones()

◆ ~ExtractZones()

Member Function Documentation

◆ setAllocatorID()

◆ getAllocatorID()

◆ execute()

◆ zoneSliceView()

◆ getExtra()

◆ nodeMap()

◆ compactNodeMap()

◆ makeTopology()

◆ makeCoordset()

◆ makeFields()

◆ topologyName()

◆ compact()

◆ outputShape()

Member Data Documentation

◆ m_topologyView

◆ m_coordsetView

◆ m_zoneSlice

◆ m_allocator_id

template<typename ExecSpace, typename TopologyView, typename CoordsetView>
class axom::bump::ExtractZones< ExecSpace, TopologyView, CoordsetView >
