Field Concepts

Fields are data that are defined over a mesh, typically with one or more values per cell. Fields can be scalar, indicating 1-component per cell - or they can contain multiple components as with vector data (2+ components per cell). This section discusses important MultiMat field concepts that determine where fields live on the mesh and how their data are organized in memory.

Field Mapping

MultiMat associates materials with cells in a mesh, possibly subdividing cells. MultiMat includes the concept of field mapping, which is where on the mesh the field data live. Fields can be defined over the cells, which is how most simulations think about cell-centered fields. With MultiMat, fields can also be defined over the materials, allowing for compact storage of material-level data. Fields can also be defined over the cells/material pairs from the Cell-Material Relation (CMR), allowing fields to have data values for each material in a cell.

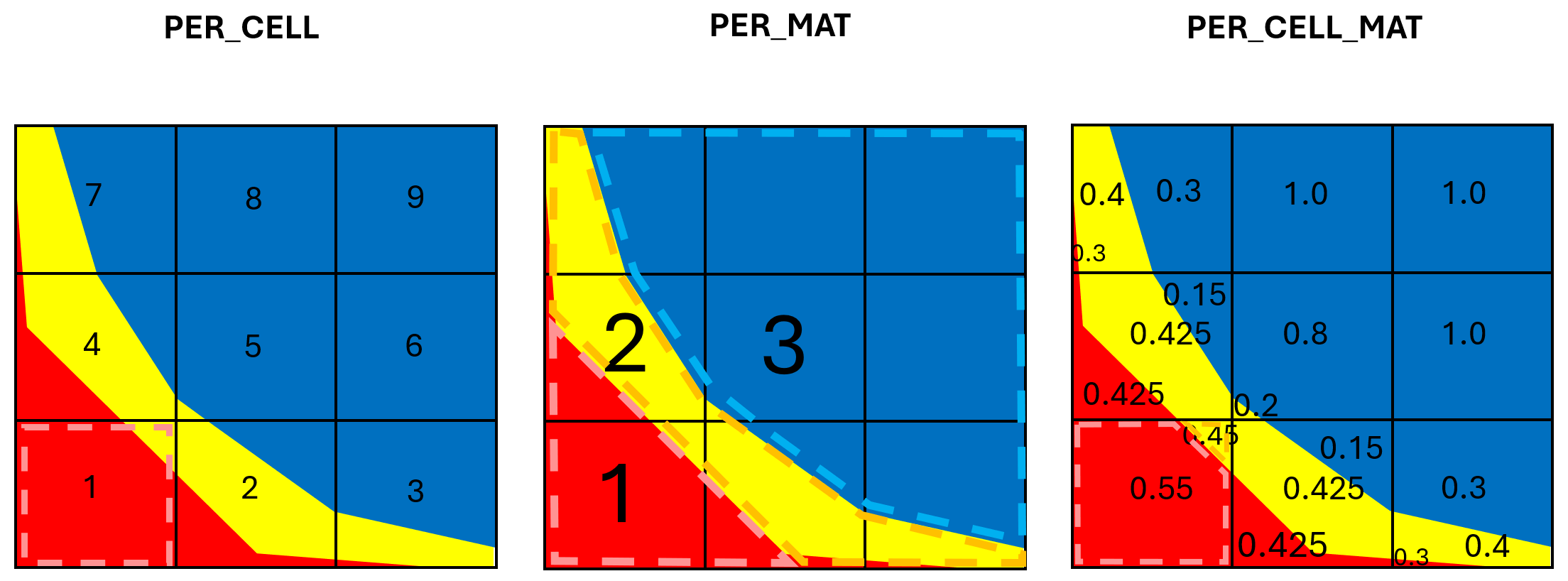

Fig. 34 Diagram showing field mapping concept.

FieldMapping	Meaning
PER_CELL	The field contains up to ncells * ncomponents values (for dense storage) and there are ncomponents values per cell. For scalars ncomponents is 1 so the field length is ncells.
PER_MAT	The field contains nmats * ncomponents values and there are ncomponents values per material. This mapping allows fields to be defined over the entire material region and any cell that uses the material inherits the per-material field value, allowing for very compact storage of material-level properties.
PER_CELL_MAT	The field contains up to ncells * nmats * ncomponents (for dense storage). This mapping allows materials within a cell to have their own unique values, which makes them useful for tracking data at a sub-cell level.

Data Layout

Simulation codes contain a variety of algorithms that may have a preference for how data are arranged in memory to ensure good performance. MultiMat supports fields with a PER_CELL_MAT mapping and there are two ways to organize such data. Fields are said to be Cell-Dominant (CELL_DOM) if they are stored such that each cell stores all of its material data to memory before proceeding to data for the next cell. Fields are Material-Dominant (MAT_DOM) if the data for all cells that use the material is stored before proceeding to the next material. The data layout for multi-material data can be thought of as 2 nested for-loops where the outer loop is the dominant loop. For example, if iterating over materials and then cells, the data are stored using MAT_DOM layout.

DataLayout	Meaning
CELL_DOM	Data are stored for each cell and then for each material like this (c=cell, m=material): {c0m0, c0m1, c0m2, ..., c1m0, c1m1, c1m2, ...}
MAT_DOM	Data are stored for each material and then for each cell like this (m=material, c=cell): {m0c0, m0c1, m0c2, m0c3, ... , m1c0, m1c1, m1c2, ...}

Sparsity Layout

Sparsity primarily concerns fields with PER_CELL_MAT mapping. When initializing the MultiMat object, the CMR indicates how materials are distributed over the mesh. It is completely acceptable for materials to skip over certain cells, which makes sense if we think about materials as a way to divide up the mesh into various regions or parts. There are ncells * nmats pairs of data that could be entered for MultiMat fields. For DENSE fields, the field must contain ncells * nmats values, with values present for cell/material pairs whether materials are present or not. This is an easy way to specify the data but it wastes memory by including extra values whose only purpose is to keep the rectangular shape of the data array.

For large meshes, compressing out unnecessary values can save a lot of memory. MultiMat supports a SPARSE layout that does not include any unnecessary values. If we regard the CMR as a matrix of true/false values, a user must only provide field values for SPARSE data where the CMR contains true values.

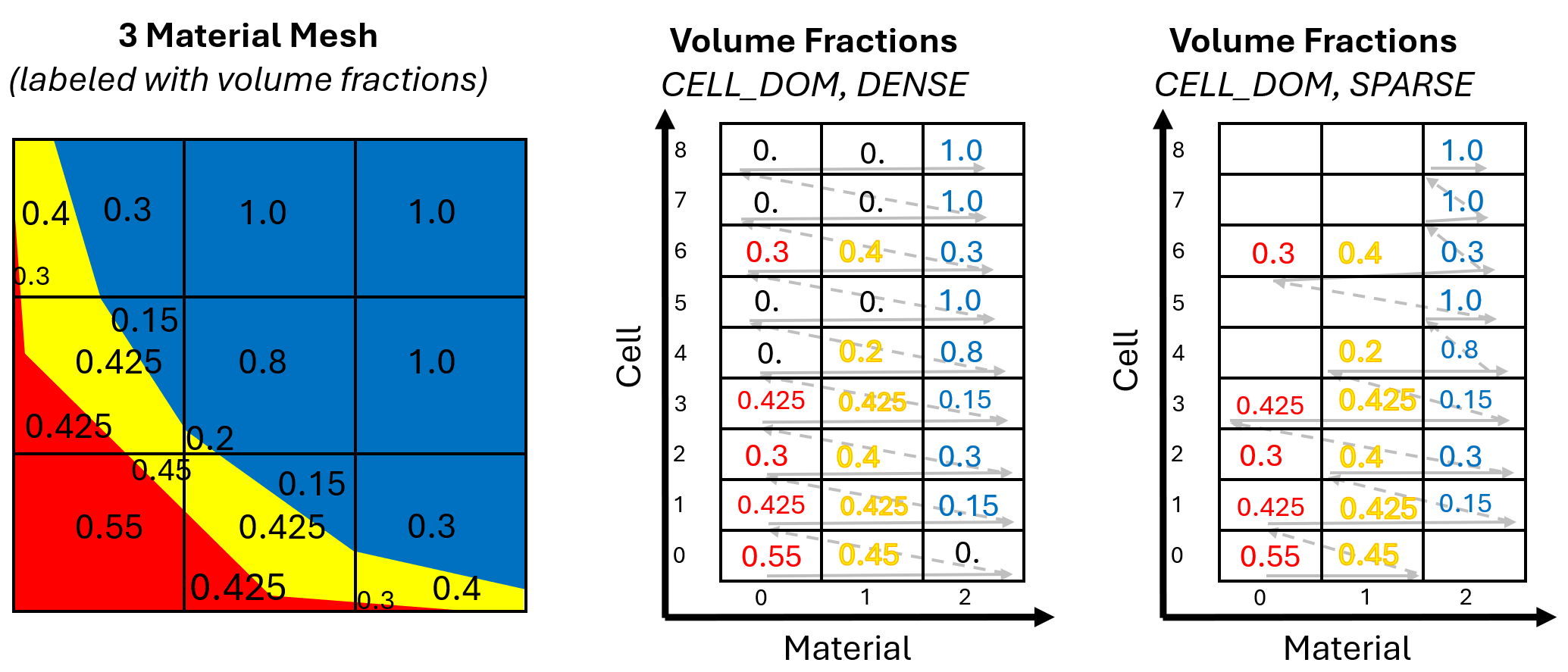

Fig. 35 Mixed-material volume fraction field with both DENSE and SPARSE representations.

SparsityLayout	Meaning
DENSE	Data are provided for all ncells * nmats pairs, even if there is no cell/material that is valid.
SPARSE	Data are provided for only the cell/material pairs that are valid according to the CMR.
