#include </home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/v0.10.1/src/axom/core/ArrayBase.hpp>

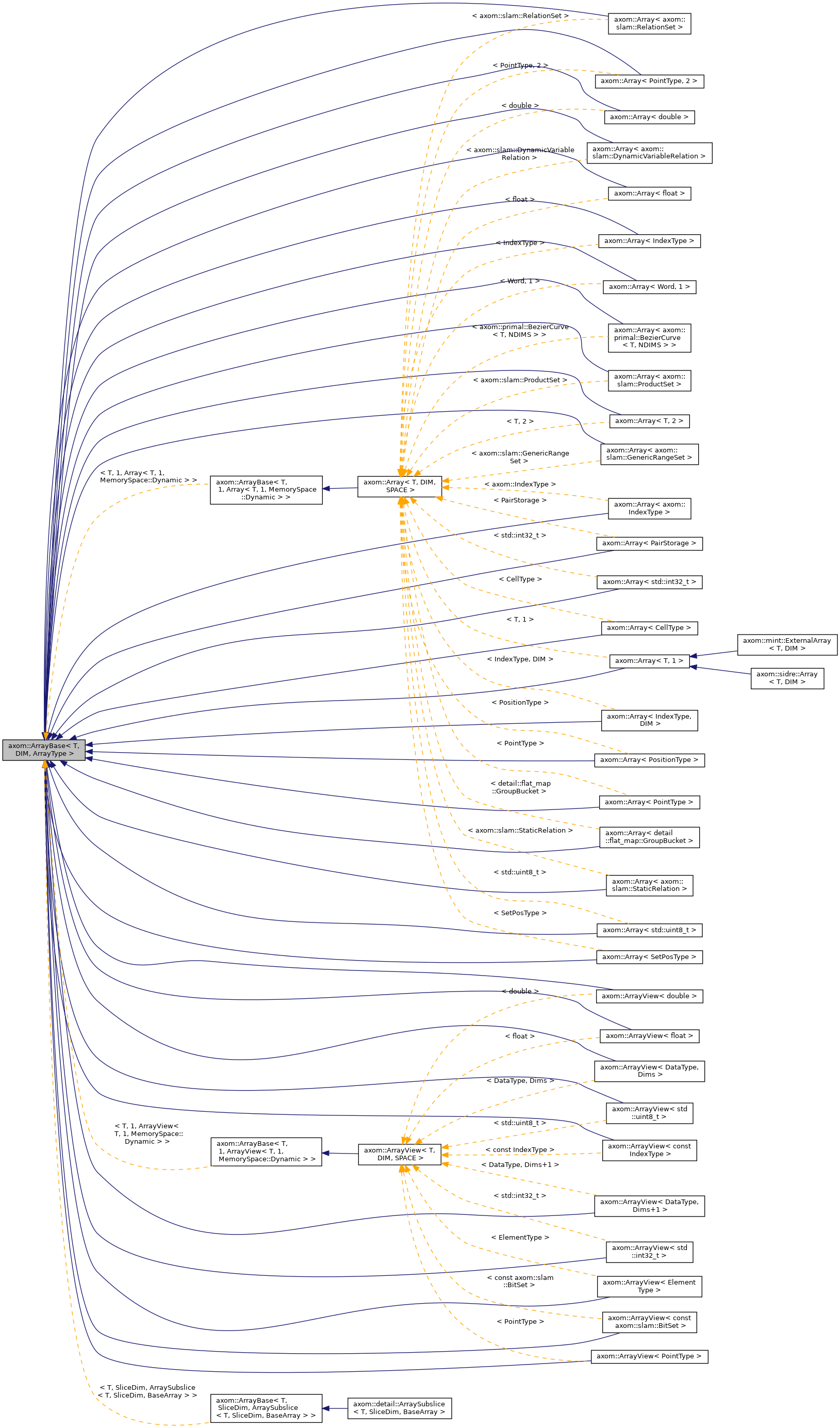

Inheritance diagram for axom::ArrayBase< T, DIM, ArrayType >:

[legend]

Public Types
using	RealConstT = typename std::conditional< is_array_view, T, const T >::type

template<int IdxDim>
using	SliceType = typename std::conditional< DIM==IdxDim, T &, typename detail::SubsliceProxy< T, DIM - IdxDim, ArrayType >::type >::type

template<int IdxDim>
using	ConstSliceType = typename std::conditional< DIM==IdxDim, RealConstT &, typename detail::SubsliceProxy< T, DIM - IdxDim, const ArrayType >::type >::type

Public Member Functions
AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE	ArrayBase ()
	Construct row-major, unitnitialized array. More...

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE	ArrayBase (const StackArray< IndexType, DIM > &shape, int min_stride=1)
	Parameterized constructor that sets up the array shape. More...

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE	ArrayBase (const StackArray< IndexType, DIM > &shape, const MDMapping< DIM > &mapping)
	Parameterized constructor that sets up the array shape, with an MDMapping to specify data ordering. More...

AXOM_HOST_DEVICE	ArrayBase (const StackArray< IndexType, DIM > &shape, const StackArray< IndexType, DIM > &stride)
	Parameterized constructor that sets up the array shape and stride. More...

template<typename OtherArrayType >
AXOM_HOST_DEVICE	ArrayBase (const ArrayBase< typename std::remove_const< T >::type, DIM, OtherArrayType > &other)
	Copy constructor for arrays of different type Because the element type (T) and dimension (DIM) are still locked down, this function is nominally used for copying ArrayBase metadata from Array <-> ArrayView and/or Array-like objects whose data are in different memory spaces. More...

template<typename OtherArrayType >
AXOM_HOST_DEVICE	ArrayBase (const ArrayBase< const typename std::remove_const< T >::type, DIM, OtherArrayType > &other)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

template<typename... Args>
AXOM_HOST_DEVICE SliceType< sizeof...(Args)>	operator() (Args... args)
	Dimension-aware accessor; with N=DIM indices, returns a reference to the given value at that index. Otherwise, returns a sub-array pointed to by the given sub-index. More...

template<typename... Args>
AXOM_HOST_DEVICE ConstSliceType< sizeof...(Args)>	operator() (Args... args) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

AXOM_HOST_DEVICE SliceType< 1 >	operator[] (const IndexType idx)
	Scalar accessor; returns a sub-array referenced by the given sub- index, beginning at array(idx, 0...) More...

AXOM_HOST_DEVICE ConstSliceType< 1 >	operator[] (const IndexType idx) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

template<int UDim>
AXOM_HOST_DEVICE SliceType< UDim >	operator[] (const StackArray< IndexType, UDim > &idx)
	Dimension-aware accessor; with UDim=DIM indices, returns a reference to the given value at that index. Otherwise, returns a sub-array pointed to by the given sub-index. More...

template<int UDim>
AXOM_HOST_DEVICE ConstSliceType< UDim >	operator[] (const StackArray< IndexType, UDim > &idx) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

void	swap (ArrayBase &other)
	Swaps two ArrayBases. More...

AXOM_HOST_DEVICE const StackArray< IndexType, DIM > &	shape () const
	Returns the dimensions of the Array. More...

AXOM_HOST_DEVICE const MDMapping< DIM > &	mapping () const
	Returns the multidimensional mapping for the Array. More...

AXOM_HOST_DEVICE const StackArray< IndexType, DIM > &	strides () const
	Returns the memory strides of the Array. More...

AXOM_HOST_DEVICE IndexType	minStride () const
	Returns the minimum stride between adjacent items. More...


AXOM_HOST_DEVICE T &	flatIndex (const IndexType idx)
	Accessor, returns a reference to the given value. For multidimensional arrays, indexes into the (flat) raw data. More...

AXOM_HOST_DEVICE RealConstT &	flatIndex (const IndexType idx) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

Static Public Attributes
constexpr static int	Dims = DIM

Protected Member Functions
AXOM_HOST_DEVICE void	setShape (const StackArray< IndexType, DIM > &shape_)
	Set the shape. More...

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE void	setShapeAndStride (const StackArray< IndexType, DIM > &shape, const StackArray< IndexType, DIM > &stride)
	Set the shape and stride. More...

IndexType	blockSize () const
	Returns the minimum "chunk size" that should be allocated For example, 2 would be the chunk size of a 2D array whose second dimension is of size 2. This is used when resizing/reallocating; it wouldn't make sense to have a capacity of 3 in the array described above. More...

AXOM_HOST_DEVICE void	updateStrides (int min_stride=1)
	Updates the internal striding information to a row-major format Intended to be called after shape is updated. More...

void	updateShapeOnInsert (const StackArray< IndexType, DIM > &range_shape)
	Updates the internal dimensions and striding based on the insertion of a range of elements. Intended to be called after the insertion of a multidimensional subslice. More...

Protected Attributes
StackArray< IndexType, DIM >	m_shape
	The extent in each direction. More...

MDMapping< DIM >	m_mapping
	For converting between multidim indices and offset. More...

IndexType	m_minStride
	Cached value for optimization. More...

Member Typedef Documentation

◆ RealConstT

template<typename T , int DIM, typename ArrayType >

using axom::ArrayBase< T, DIM, ArrayType >::RealConstT = typename std::conditional<is_array_view, T, const T>::type

◆ SliceType

template<typename T , int DIM, typename ArrayType >

template<int IdxDim>

using axom::ArrayBase< T, DIM, ArrayType >::SliceType = typename std::conditional< DIM == IdxDim, T&, typename detail::SubsliceProxy<T, DIM - IdxDim, ArrayType>::type>::type

◆ ConstSliceType

template<typename T , int DIM, typename ArrayType >

template<int IdxDim>

using axom::ArrayBase< T, DIM, ArrayType >::ConstSliceType = typename std::conditional< DIM == IdxDim, RealConstT&, typename detail::SubsliceProxy<T, DIM - IdxDim, const ArrayType>::type>::type

Constructor & Destructor Documentation

◆ ArrayBase() [1/6]

template<typename T , int DIM, typename ArrayType >

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE axom::ArrayBase< T, DIM, ArrayType >::ArrayBase ( )

inline

Construct row-major, unitnitialized array.

References axom::ROW, and axom::ArrayBase< T, DIM, ArrayType >::updateStrides().

◆ ArrayBase() [2/6]

template<typename T , int DIM, typename ArrayType >

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE axom::ArrayBase< T, DIM, ArrayType >::ArrayBase	(	const StackArray< IndexType, DIM > &	shape,
		int	min_stride = `1`
	)

inline

Parameterized constructor that sets up the array shape.

Parameters

[in]	shape	Array size in each direction.
[in]	min_stride	The minimum stride between two consecutive elements in row-major order.

References axom::ROW.

◆ ArrayBase() [3/6]

template<typename T , int DIM, typename ArrayType >

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE axom::ArrayBase< T, DIM, ArrayType >::ArrayBase	(	const StackArray< IndexType, DIM > &	shape,
		const MDMapping< DIM > &	mapping
	)

inline

Parameterized constructor that sets up the array shape, with an MDMapping to specify data ordering.

Parameters

[in]	shape	Array size in each direction.
[in]	mapping	Model mapper, specifying the array stride order and minimum stride.

The object is constructed with the given shape, not the partial shape information in mapping.

◆ ArrayBase() [4/6]

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE axom::ArrayBase< T, DIM, ArrayType >::ArrayBase	(	const StackArray< IndexType, DIM > &	shape,
		const StackArray< IndexType, DIM > &	stride
	)

inline

Parameterized constructor that sets up the array shape and stride.

Parameters

[in]	shape	Array size in each direction.
[in]	stride	Array stride for each direction.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping, axom::ArrayBase< T, DIM, ArrayType >::m_minStride, axom::ROW, and axom::ArrayBase< T, DIM, ArrayType >::shape().

◆ ArrayBase() [5/6]

template<typename T , int DIM, typename ArrayType >

template<typename OtherArrayType >

AXOM_HOST_DEVICE axom::ArrayBase< T, DIM, ArrayType >::ArrayBase ( const ArrayBase< typename std::remove_const< T >::type, DIM, OtherArrayType > & other )

inline

Copy constructor for arrays of different type Because the element type (T) and dimension (DIM) are still locked down, this function is nominally used for copying ArrayBase metadata from Array <-> ArrayView and/or Array-like objects whose data are in different memory spaces.

◆ ArrayBase() [6/6]

template<typename T , int DIM, typename ArrayType >

template<typename OtherArrayType >

AXOM_HOST_DEVICE axom::ArrayBase< T, DIM, ArrayType >::ArrayBase ( const ArrayBase< const typename std::remove_const< T >::type, DIM, OtherArrayType > & other )

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Member Function Documentation

◆ operator()() [1/2]

template<typename T , int DIM, typename ArrayType >

template<typename... Args>

AXOM_HOST_DEVICE SliceType<sizeof...(Args)> axom::ArrayBase< T, DIM, ArrayType >::operator() ( Args... args )

inline

Dimension-aware accessor; with N=DIM indices, returns a reference to the given value at that index. Otherwise, returns a sub-array pointed to by the given sub-index.

Parameters

[in] args the parameter pack of indices in each dimension.

Note: equivalent to *(array.data() + idx).

Precondition: sizeof...(Args) <= DIM; 0 <= args[i] < shape()[i] for i in [0, sizeof...(Args))

◆ operator()() [2/2]

template<typename T , int DIM, typename ArrayType >

template<typename... Args>

AXOM_HOST_DEVICE ConstSliceType<sizeof...(Args)> axom::ArrayBase< T, DIM, ArrayType >::operator() ( Args... args ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ operator[]() [1/4]

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE SliceType<1> axom::ArrayBase< T, DIM, ArrayType >::operator[] ( const IndexType idx )

inline

Scalar accessor; returns a sub-array referenced by the given sub- index, beginning at array(idx, 0...)

Parameters

[in] idx the index of the first dimension.

Precondition: 0 <= idx < shape()[0]

◆ operator[]() [2/4]

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE ConstSliceType<1> axom::ArrayBase< T, DIM, ArrayType >::operator[] ( const IndexType idx ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ operator[]() [3/4]

template<typename T , int DIM, typename ArrayType >

template<int UDim>

AXOM_HOST_DEVICE SliceType<UDim> axom::ArrayBase< T, DIM, ArrayType >::operator[] ( const StackArray< IndexType, UDim > & idx )

inline

Dimension-aware accessor; with UDim=DIM indices, returns a reference to the given value at that index. Otherwise, returns a sub-array pointed to by the given sub-index.

Parameters

[in] args a stack array of indices in each dimension.

Note: equivalent to *(array.data() + idx).

Precondition: UDim <= DIM; 0 <= args[i] < shape()[i] for i in [0, UDim)

◆ operator[]() [4/4]

template<typename T , int DIM, typename ArrayType >

template<int UDim>

AXOM_HOST_DEVICE ConstSliceType<UDim> axom::ArrayBase< T, DIM, ArrayType >::operator[] ( const StackArray< IndexType, UDim > & idx ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ flatIndex() [1/2]

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE T& axom::ArrayBase< T, DIM, ArrayType >::flatIndex ( const IndexType idx )

inline

Accessor, returns a reference to the given value. For multidimensional arrays, indexes into the (flat) raw data.

Parameters

[in] idx the position of the value to return.

Note: equivalent to *(array.data() + idx * minStride()).

Precondition: 0 <= idx < asDerived().size()

◆ flatIndex() [2/2]

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE RealConstT& axom::ArrayBase< T, DIM, ArrayType >::flatIndex ( const IndexType idx ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

◆ swap()

template<typename T , int DIM, typename ArrayType >

void axom::ArrayBase< T, DIM, ArrayType >::swap ( ArrayBase< T, DIM, ArrayType > & other )

inline

Swaps two ArrayBases.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping, axom::ArrayBase< T, DIM, ArrayType >::m_minStride, axom::ArrayBase< T, DIM, ArrayType >::m_shape, and axom::utilities::swap().

◆ shape()

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE const StackArray<IndexType, DIM>& axom::ArrayBase< T, DIM, ArrayType >::shape ( ) const

inline

Returns the dimensions of the Array.

References axom::ArrayBase< T, DIM, ArrayType >::m_shape.

◆ mapping()

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE const MDMapping<DIM>& axom::ArrayBase< T, DIM, ArrayType >::mapping ( ) const

inline

Returns the multidimensional mapping for the Array.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping.

◆ strides()

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE const StackArray<IndexType, DIM>& axom::ArrayBase< T, DIM, ArrayType >::strides ( ) const

inline

Returns the memory strides of the Array.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping.

◆ minStride()

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE IndexType axom::ArrayBase< T, DIM, ArrayType >::minStride ( ) const

inline

Returns the minimum stride between adjacent items.

References axom::ArrayBase< T, DIM, ArrayType >::m_minStride.

◆ setShape()

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE void axom::ArrayBase< T, DIM, ArrayType >::setShape ( const StackArray< IndexType, DIM > & shape_ )

inlineprotected

Set the shape.

References axom::ArrayBase< T, DIM, ArrayType >::m_shape, and axom::ArrayBase< T, DIM, ArrayType >::updateStrides().

◆ setShapeAndStride()

template<typename T , int DIM, typename ArrayType >

AXOM_SUPPRESS_HD_WARN AXOM_HOST_DEVICE void axom::ArrayBase< T, DIM, ArrayType >::setShapeAndStride	(	const StackArray< IndexType, DIM > &	shape,
		const StackArray< IndexType, DIM > &	stride
	)

inlineprotected

Set the shape and stride.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping, axom::ArrayBase< T, DIM, ArrayType >::m_minStride, axom::ArrayBase< T, DIM, ArrayType >::m_shape, and axom::ArrayBase< T, DIM, ArrayType >::shape().

◆ blockSize()

template<typename T , int DIM, typename ArrayType >

IndexType axom::ArrayBase< T, DIM, ArrayType >::blockSize ( ) const

inlineprotected

Returns the minimum "chunk size" that should be allocated For example, 2 would be the chunk size of a 2D array whose second dimension is of size 2. This is used when resizing/reallocating; it wouldn't make sense to have a capacity of 3 in the array described above.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping.

◆ updateStrides()

template<typename T , int DIM, typename ArrayType >

AXOM_HOST_DEVICE void axom::ArrayBase< T, DIM, ArrayType >::updateStrides ( int min_stride = 1 )

inlineprotected

Updates the internal striding information to a row-major format Intended to be called after shape is updated.

References axom::ArrayBase< T, DIM, ArrayType >::m_mapping, axom::ArrayBase< T, DIM, ArrayType >::m_minStride, and axom::ArrayBase< T, DIM, ArrayType >::m_shape.

◆ updateShapeOnInsert()

template<typename T , int DIM, typename ArrayType >

void axom::ArrayBase< T, DIM, ArrayType >::updateShapeOnInsert ( const StackArray< IndexType, DIM > & range_shape )

inlineprotected

Updates the internal dimensions and striding based on the insertion of a range of elements. Intended to be called after the insertion of a multidimensional subslice.

References axom::StackArray< T, N >::begin(), axom::StackArray< T, N >::end(), axom::ArrayBase< T, DIM, ArrayType >::m_shape, axom::utilities::processAbort(), and axom::ArrayBase< T, DIM, ArrayType >::updateStrides().

Member Data Documentation

◆ Dims

template<typename T , int DIM, typename ArrayType >

constexpr static int axom::ArrayBase< T, DIM, ArrayType >::Dims = DIM

staticconstexpr

◆ m_shape

template<typename T , int DIM, typename ArrayType >

StackArray<IndexType, DIM> axom::ArrayBase< T, DIM, ArrayType >::m_shape

protected

The extent in each direction.

◆ m_mapping

template<typename T , int DIM, typename ArrayType >

MDMapping<DIM> axom::ArrayBase< T, DIM, ArrayType >::m_mapping

protected

For converting between multidim indices and offset.

◆ m_minStride

template<typename T , int DIM, typename ArrayType >

IndexType axom::ArrayBase< T, DIM, ArrayType >::m_minStride

protected

Cached value for optimization.

See also: minStride()

For some reason, computing min stride in minStride() slows down flatIndex() for CUDA and HIP, even though it doesn't seem tricky to optimize. As a work around, we cache the value in m_minStrides and update it when m_mapping changes. BTNG, March 2024.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/v0.10.1/src/axom/core/ArrayBase.hpp

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Member Typedef Documentation

◆ RealConstT

◆ SliceType

◆ ConstSliceType

Constructor & Destructor Documentation

◆ ArrayBase() [1/6]

◆ ArrayBase() [2/6]

◆ ArrayBase() [3/6]

◆ ArrayBase() [4/6]

◆ ArrayBase() [5/6]

◆ ArrayBase() [6/6]

Member Function Documentation

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator[]() [1/4]

◆ operator[]() [2/4]

◆ operator[]() [3/4]

◆ operator[]() [4/4]

◆ flatIndex() [1/2]

◆ flatIndex() [2/2]

◆ swap()

◆ shape()

◆ mapping()

◆ strides()

◆ minStride()

◆ setShape()

◆ setShapeAndStride()

◆ blockSize()

◆ updateStrides()

◆ updateShapeOnInsert()

Member Data Documentation

◆ Dims

◆ m_shape

◆ m_mapping

◆ m_minStride
