Base class for Material Interface Reconstruction (MIR) algorithms. More...

#include </home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/main/src/axom/mir/MIRAlgorithm.hpp>

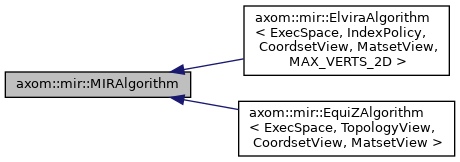

Inheritance diagram for axom::mir::MIRAlgorithm:

Public Member Functions
	MIRAlgorithm ()=default

virtual	~MIRAlgorithm ()=default

virtual void	execute (const conduit::Node &n_input, const conduit::Node &n_options, conduit::Node &n_output)

Protected Member Functions
void	executeSetup (const conduit::Node &n_domain, const conduit::Node &n_options, conduit::Node &n_newDomain)
	Set up the new domain from the old one and invoke executeDomain. More...

virtual void	executeDomain (const conduit::Node &n_topo, const conduit::Node &n_coordset, const conduit::Node &n_fields, const conduit::Node &n_matset, const conduit::Node &n_options, conduit::Node &n_newTopo, conduit::Node &n_newCoordset, conduit::Node &n_newFields, conduit::Node &n_newMatset)=0
	Perform material interface reconstruction on a single domain. Derived classes must implement this method and any device-specific coding gets handled under it. More...

void	updateNames (const std::string &origTopoName, const std::string &newTopoName, const std::string &origCoordsetName, const std::string &newCoordsetName, const std::string &origMatsetName, const std::string &newMatsetName, conduit::Node &n_newTopo, conduit::Node &n_newCoordset, conduit::Node &n_newFields, conduit::Node &n_newMatset)
	Update names in some of the objects when we can tell they have been renamed. More...

void	copyState (const conduit::Node &srcState, conduit::Node &destState) const
	Copy state from the src domain to the destination domain. More...

void	printNode (const conduit::Node &n) const
	This is a utility method for printing a Conduit node with large limits for lines and element counts. More...

void	saveMesh (const conduit::Node &n_mesh, const std::string &filebase) const
	Save a Blueprint mesh to disk (YAML and HDF5, if available). More...

std::string	localPath (const conduit::Node &obj) const
	Return the local path name, stripping off a domain path prefix. Blueprint domains are typically written under top level nodes with names like "domain_{:05}" or "domain_{:07}". This method will strip off any path prefix beginning with "domain". More...

Detailed Description

Base class for Material Interface Reconstruction (MIR) algorithms.

Constructor & Destructor Documentation

◆ MIRAlgorithm()

axom::mir::MIRAlgorithm::MIRAlgorithm ( )

default

◆ ~MIRAlgorithm()

virtual axom::mir::MIRAlgorithm::~MIRAlgorithm ( )

virtualdefault

Member Function Documentation

◆ execute()

virtual void axom::mir::MIRAlgorithm::execute	(	const conduit::Node &	n_input,
		const conduit::Node &	n_options,
		conduit::Node &	n_output
	)

virtual

\brief Perform material interface reconstruction on the mesh supplied by \a n_input.

\param[in] n_input The node that contains a mesh domain with the topology and matset
                   to be used for MIR.
\param[in] n_options A node that contains options that help govern MIR execution.

options:
  topology: main
  matset: matset
  topologyName: mirtopo
  coordsetName: mircoords
  matsetName: cleanmat
  fields:
    - temperature
    - pressure
  selectedZones: [0,1,6,9]
  mapping: 0

The "topology" option specifies which topology we'll reconstruct. It must have an associated matset. "new_topology" is the name of the topology that will be created in the output node. "new_coordset" is the name of the new coordset that will be created in the output node. If it is not provided then the name of the topology's coordset will be used.
"new_matset" is the name of the new matset that will be created in the output node. If it is not provided then the name of the topology's matset will be used.
"fields" is the name of the fields to map to the new topology. If fields is specified but empty, no fields will be mapped. If fields is not present then all fields will be mapped. "zones" is a list of zone indices from the topology that need to be reconstructed. If not present then all zones will be considered. "mapping" indicates whether we should include an originalElements field on the new topology to indicate where each new zone came from in the original topology.

Parameters

[out] n_output A node that will contain the new entities.

◆ executeSetup()

void axom::mir::MIRAlgorithm::executeSetup	(	const conduit::Node &	n_domain,
		const conduit::Node &	n_options,
		conduit::Node &	n_newDomain
	)

protected

Set up the new domain from the old one and invoke executeDomain.

Parameters

n_domain	The input domain.
n_options	The MIR options.
n_newDomain	The output domain.

◆ executeDomain()

virtual void axom::mir::MIRAlgorithm::executeDomain	(	const conduit::Node &	n_topo,
		const conduit::Node &	n_coordset,
		const conduit::Node &	n_fields,
		const conduit::Node &	n_matset,
		const conduit::Node &	n_options,
		conduit::Node &	n_newTopo,
		conduit::Node &	n_newCoordset,
		conduit::Node &	n_newFields,
		conduit::Node &	n_newMatset
	)

protectedpure virtual

Perform material interface reconstruction on a single domain. Derived classes must implement this method and any device-specific coding gets handled under it.

Parameters

[in]	n_topo	The Conduit node containing the topology that will be used for MIR.
[in]	n_coordset	The Conduit node containing the coordset.
[in]	n_fields	The Conduit node containing the fields.
[in]	n_matset	The Conduit node containing the matset.
[in]	n_options	The Conduit node containing the options that help govern MIR execution.
[out]	n_newTopo	A node that will contain the new clipped topology.
[out]	n_newCoordset	A node that will contain the new coordset for the clipped topology.
[out]	n_newFields	A node that will contain the new fields for the clipped topology.
[out]	n_newMatset	A Conduit node that will contain the new matset.

Implemented in axom::mir::EquiZAlgorithm< ExecSpace, TopologyView, CoordsetView, MatsetView >, and axom::mir::ElviraAlgorithm< ExecSpace, IndexPolicy, CoordsetView, MatsetView, MAX_VERTS_2D >.

◆ updateNames()

void axom::mir::MIRAlgorithm::updateNames	(	const std::string &	origTopoName,
		const std::string &	newTopoName,
		const std::string &	origCoordsetName,
		const std::string &	newCoordsetName,
		const std::string &	origMatsetName,
		const std::string &	newMatsetName,
		conduit::Node &	n_newTopo,
		conduit::Node &	n_newCoordset,
		conduit::Node &	n_newFields,
		conduit::Node &	n_newMatset
	)

protected

Update names in some of the objects when we can tell they have been renamed.

Parameters

origTopoName	The topology name of the input mesh.
newTopoName	The topology name of the output mesh.
origCoordsetName	The coordset name of the input mesh.
newCoordsetName	The coordset name of the output mesh.
origMatsetName	The matset name of the input mesh.
newMatsetName	The matset name of the output mesh.
n_newTopo	The node that contains the output topology.
n_newCoordset	The node that contains the output coordset.
n_newFields	The node that contains the output fields.
n_newMatset	The node that contains the output matset.

Note: This method is used internally mainly when MIR copies the input mesh to the output when MIR is no-op.

◆ copyState()

void axom::mir::MIRAlgorithm::copyState	(	const conduit::Node &	srcState,
		conduit::Node &	destState
	)		const

protected

Copy state from the src domain to the destination domain.

Parameters

srcState	The node that contains the state in the source domain.
destState	The node that contains the state in the destination domain.

◆ printNode()

void axom::mir::MIRAlgorithm::printNode ( const conduit::Node & n ) const

protected

This is a utility method for printing a Conduit node with large limits for lines and element counts.

Parameters

n	The Conduit node to print.

◆ saveMesh()

void axom::mir::MIRAlgorithm::saveMesh	(	const conduit::Node &	n_mesh,
		const std::string &	filebase
	)		const

protected

Save a Blueprint mesh to disk (YAML and HDF5, if available).

Parameters

n_mesh	The mesh to save.
filebase	The base filename to use when writing files. Extensions may be added.

◆ localPath()

std::string axom::mir::MIRAlgorithm::localPath ( const conduit::Node & obj ) const

protected

Return the local path name, stripping off a domain path prefix. Blueprint domains are typically written under top level nodes with names like "domain_{:05}" or "domain_{:07}". This method will strip off any path prefix beginning with "domain".

Parameters

[in] obj The object whose local path we want.

Returns: The path without the domain prefix.

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/main/src/axom/mir/MIRAlgorithm.hpp
