This class encapsulates a structured mesh size and contains methods to help with indexing into it. More...

#include </home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/main/src/axom/bump/views/StructuredIndexing.hpp>

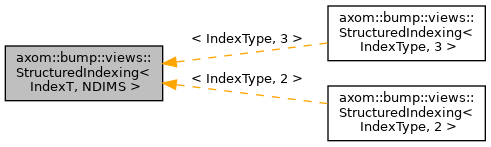

Inheritance diagram for axom::bump::views::StructuredIndexing< IndexT, NDIMS >:

[legend]

Public Types
using	IndexType = IndexT

using	LogicalIndex = axom::StackArray< IndexType, NDIMS >

Public Member Functions
AXOM_HOST_DEVICE	StructuredIndexing ()
	constructor More...

AXOM_HOST_DEVICE	StructuredIndexing (const LogicalIndex &dims)

AXOM_HOST_DEVICE IndexType	size () const
	Return the number of points in the index space. More...

AXOM_HOST_DEVICE const LogicalIndex &	logicalDimensions () const
	Return the logical dimensions. More...

AXOM_HOST_DEVICE IndexType ::type	jStride () const

template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==3, IndexType >::type	kStride () const
	Return the k stride. More...

AXOM_HOST_DEVICE IndexType	globalToGlobal (const LogicalIndex &global) const
	Turn a global logical index into an index. More...

AXOM_HOST_DEVICE LogicalIndex	globalToGlobal (IndexType global) const
	Turn a global index into a global logical index. More...

AXOM_HOST_DEVICE LogicalIndex	globalToLocal (const LogicalIndex &index) const
	Turn global logical index to local logical index. no-op. More...

AXOM_HOST_DEVICE IndexType	globalToLocal (IndexType index) const
	Turn global index to local index. no-op. More...

AXOM_HOST_DEVICE LogicalIndex	localToGlobal (const LogicalIndex &index) const
	Turn local logical index to global logical index. no-op. More...

AXOM_HOST_DEVICE IndexType	localToGlobal (IndexType index) const
	Turn local index to global index. no-op. More...

AXOM_HOST_DEVICE bool	contains (const LogicalIndex &logical) const
	Determines whether the indexing contains the supplied logical index. More...

AXOM_HOST_DEVICE bool	contains (IndexType index) const
	Determines whether the indexing contains the supplied index. More...

AXOM_HOST_DEVICE StructuredIndexing	expand () const
	Expand the current StructuredIndexing by one in each dimension. More...


template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==1, LogicalIndex >::type	indexToLogicalIndex (IndexType index) const
	Turn an index into a logical index. More...

template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==2, LogicalIndex >::type	indexToLogicalIndex (IndexType index) const

template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==3, LogicalIndex >::type	indexToLogicalIndex (IndexType index) const


template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==1, IndexType >::type	logicalIndexToIndex (const LogicalIndex &logical) const
	Turn a logical index into a flat index. More...

template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==2, IndexType >::type	logicalIndexToIndex (const LogicalIndex &logical) const

template<int _ndims = NDIMS>
AXOM_HOST_DEVICE std::enable_if< _ndims==3, IndexType >::type	logicalIndexToIndex (const LogicalIndex &logical) const


AXOM_HOST_DEVICE LogicalIndex	clamp (const LogicalIndex &logical) const
	Given a logical index that may or may not be in the index space, return a clamped logical index that is in the index space. The logical indices are clamped to [0, dimensions-1] in each dimension. More...

IndexType	clamp (IndexType index) const

Static Public Member Functions
constexpr static AXOM_HOST_DEVICE int	dimension ()

static constexpr AXOM_HOST_DEVICE bool	supports_strided_structured_indexing ()
	Return whether the view supports strided structured indexing. More...

Detailed Description

template<typename IndexT, int NDIMS = 3>
class axom::bump::views::StructuredIndexing< IndexT, NDIMS >

This class encapsulates a structured mesh size and contains methods to help with indexing into it.

Template Parameters

IndexT	The type used for indices.
NDIMS	The number of dimensions.

Member Typedef Documentation

◆ IndexType

template<typename IndexT , int NDIMS = 3>

using axom::bump::views::StructuredIndexing< IndexT, NDIMS >::IndexType = IndexT

◆ LogicalIndex

template<typename IndexT , int NDIMS = 3>

using axom::bump::views::StructuredIndexing< IndexT, NDIMS >::LogicalIndex = axom::StackArray<IndexType, NDIMS>

Constructor & Destructor Documentation

◆ StructuredIndexing() [1/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE axom::bump::views::StructuredIndexing< IndexT, NDIMS >::StructuredIndexing ( )

inline

constructor

Parameters

dims	The dimensions we're indexing.

◆ StructuredIndexing() [2/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE axom::bump::views::StructuredIndexing< IndexT, NDIMS >::StructuredIndexing ( const LogicalIndex & dims )

inline

References SLIC_ERROR_IF.

Member Function Documentation

◆ dimension()

template<typename IndexT , int NDIMS = 3>

constexpr static AXOM_HOST_DEVICE int axom::bump::views::StructuredIndexing< IndexT, NDIMS >::dimension ( )

inlinestaticconstexpr

◆ supports_strided_structured_indexing()

template<typename IndexT , int NDIMS = 3>

static constexpr AXOM_HOST_DEVICE bool axom::bump::views::StructuredIndexing< IndexT, NDIMS >::supports_strided_structured_indexing ( )

inlinestaticconstexpr

Return whether the view supports strided structured indexing.

Returns: false

◆ size()

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE IndexType axom::bump::views::StructuredIndexing< IndexT, NDIMS >::size ( ) const

inline

Return the number of points in the index space.

Returns: The number of points in the index space.

◆ logicalDimensions()

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE const LogicalIndex& axom::bump::views::StructuredIndexing< IndexT, NDIMS >::logicalDimensions ( ) const

inline

Return the logical dimensions.

Returns: The logical dimensions.

◆ jStride()

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE IndexType ::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::jStride ( ) const

inline

◆ kStride()

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 3, IndexType>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::kStride ( ) const

inline

Return the k stride.

Returns: The k stride to move forward a "page".

◆ globalToGlobal() [1/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE IndexType axom::bump::views::StructuredIndexing< IndexT, NDIMS >::globalToGlobal ( const LogicalIndex & global ) const

inline

Turn a global logical index into an index.

Parameters

global The global logical index to convert.

Returns: The global index.

References axom::bump::views::StructuredIndexing< IndexT, NDIMS >::logicalIndexToIndex().

◆ globalToGlobal() [2/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE LogicalIndex axom::bump::views::StructuredIndexing< IndexT, NDIMS >::globalToGlobal ( IndexType global ) const

inline

Turn a global index into a global logical index.

Parameters

global The global index to convert.

Returns: The global logical index.

References axom::bump::views::StructuredIndexing< IndexT, NDIMS >::indexToLogicalIndex().

◆ globalToLocal() [1/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE LogicalIndex axom::bump::views::StructuredIndexing< IndexT, NDIMS >::globalToLocal ( const LogicalIndex & index ) const

inline

Turn global logical index to local logical index. no-op.

Parameters

index The index to convert.

Returns: Same as the input in this case.

◆ globalToLocal() [2/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE IndexType axom::bump::views::StructuredIndexing< IndexT, NDIMS >::globalToLocal ( IndexType index ) const

inline

Turn global index to local index. no-op.

Parameters

index The index to convert.

Returns: Same as the input in this case.

◆ localToGlobal() [1/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE LogicalIndex axom::bump::views::StructuredIndexing< IndexT, NDIMS >::localToGlobal ( const LogicalIndex & index ) const

inline

Turn local logical index to global logical index. no-op.

Parameters

index The index to convert.

Returns: Same as the input in this case.

◆ localToGlobal() [2/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE IndexType axom::bump::views::StructuredIndexing< IndexT, NDIMS >::localToGlobal ( IndexType index ) const

inline

Turn local index to global index. no-op.

Parameters

index The index to convert.

Returns: Same as the input in this case.

◆ indexToLogicalIndex() [1/3]

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 1, LogicalIndex>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::indexToLogicalIndex ( IndexType index ) const

inline

Turn an index into a logical index.

Parameters

index The index to convert.

Returns: The logical index that corresponds to the index.

◆ indexToLogicalIndex() [2/3]

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 2, LogicalIndex>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::indexToLogicalIndex ( IndexType index ) const

inline

◆ indexToLogicalIndex() [3/3]

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 3, LogicalIndex>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::indexToLogicalIndex ( IndexType index ) const

inline

◆ logicalIndexToIndex() [1/3]

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 1, IndexType>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::logicalIndexToIndex ( const LogicalIndex & logical ) const

inline

Turn a logical index into a flat index.

Parameters

logical The logical indexto convert to a flat index.

Returns: The index that corresponds to the logical index.

◆ logicalIndexToIndex() [2/3]

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 2, IndexType>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::logicalIndexToIndex ( const LogicalIndex & logical ) const

inline

◆ logicalIndexToIndex() [3/3]

template<typename IndexT , int NDIMS = 3>

template<int _ndims = NDIMS>

AXOM_HOST_DEVICE std::enable_if<_ndims == 3, IndexType>::type axom::bump::views::StructuredIndexing< IndexT, NDIMS >::logicalIndexToIndex ( const LogicalIndex & logical ) const

inline

◆ contains() [1/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE bool axom::bump::views::StructuredIndexing< IndexT, NDIMS >::contains ( const LogicalIndex & logical ) const

inline

Determines whether the indexing contains the supplied logical index.

Parameters

logical The logical index being tested.

Returns: True if the logical index is within the index, false otherwise.

References axom::bump::views::StructuredIndexing< IndexT, NDIMS >::dimension().

◆ contains() [2/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE bool axom::bump::views::StructuredIndexing< IndexT, NDIMS >::contains ( IndexType index ) const

inline

Determines whether the indexing contains the supplied index.

Parameters

index The index being tested.

Returns: True if the index is within the index, false otherwise.

References axom::bump::views::StructuredIndexing< IndexT, NDIMS >::contains(), and axom::bump::views::StructuredIndexing< IndexT, NDIMS >::indexToLogicalIndex().

◆ expand()

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE StructuredIndexing axom::bump::views::StructuredIndexing< IndexT, NDIMS >::expand ( ) const

inline

Expand the current StructuredIndexing by one in each dimension.

Returns: An expanded StructuredIndexing.

References axom::bump::views::StructuredIndexing< IndexT, NDIMS >::dimension().

◆ clamp() [1/2]

template<typename IndexT , int NDIMS = 3>

AXOM_HOST_DEVICE LogicalIndex axom::bump::views::StructuredIndexing< IndexT, NDIMS >::clamp ( const LogicalIndex & logical ) const

inline

Given a logical index that may or may not be in the index space, return a clamped logical index that is in the index space. The logical indices are clamped to [0, dimensions-1] in each dimension.

Parameters

logical The input logical index being clamped.

Return values

A	new LogicalIndex that is in the index space.

References axom::utilities::clampVal(), and axom::bump::views::StructuredIndexing< IndexT, NDIMS >::dimension().

◆ clamp() [2/2]

template<typename IndexT , int NDIMS = 3>

IndexType axom::bump::views::StructuredIndexing< IndexT, NDIMS >::clamp ( IndexType index ) const

inline

References axom::bump::views::StructuredIndexing< IndexT, NDIMS >::clamp(), axom::bump::views::StructuredIndexing< IndexT, NDIMS >::indexToLogicalIndex(), and axom::bump::views::StructuredIndexing< IndexT, NDIMS >::logicalIndexToIndex().

The documentation for this class was generated from the following file:

/home/docs/checkouts/readthedocs.org/user_builds/axom/checkouts/main/src/axom/bump/views/StructuredIndexing.hpp

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

template<typename IndexT, int NDIMS = 3> class axom::bump::views::StructuredIndexing< IndexT, NDIMS >

Member Typedef Documentation

◆ IndexType

◆ LogicalIndex

Constructor & Destructor Documentation

◆ StructuredIndexing() [1/2]

◆ StructuredIndexing() [2/2]

Member Function Documentation

◆ dimension()

◆ supports_strided_structured_indexing()

◆ size()

◆ logicalDimensions()

◆ jStride()

◆ kStride()

◆ globalToGlobal() [1/2]

◆ globalToGlobal() [2/2]

◆ globalToLocal() [1/2]

◆ globalToLocal() [2/2]

◆ localToGlobal() [1/2]

◆ localToGlobal() [2/2]

◆ indexToLogicalIndex() [1/3]

◆ indexToLogicalIndex() [2/3]

◆ indexToLogicalIndex() [3/3]

◆ logicalIndexToIndex() [1/3]

◆ logicalIndexToIndex() [2/3]

◆ logicalIndexToIndex() [3/3]

◆ contains() [1/2]

◆ contains() [2/2]

◆ expand()

◆ clamp() [1/2]

◆ clamp() [2/2]

template<typename IndexT, int NDIMS = 3>
class axom::bump::views::StructuredIndexing< IndexT, NDIMS >
